Symmetry Elevator - Inline Gear Drive

Inline Gear Drive Serving Pittsburgh, Buffalo, Rochester, Syracuse, Erie, and Surrounding Areas

Cibes Symmetry’s only machine room-less elevator system. The inline gear drive does not require a machine room – saving you space and money.

Standard Features:

  • Travel: Maximum of 50’0″ (minimum 12 inches between stops)
  • Speed: 40 feet per minute
  • Rated Capacity: 1,000 pounds
  • Pit depth: 6” minimum (8 inches preferred)
  • Overhead minimum of 8’0″ (96 inches) with remote controller; minimum of 9’0″ with controller in hoistway with a 7’0″ interior car height
  • Two stops
  • Single opening
  • Three-year limited parts warranty

Optional Enhancements:

  • Up to six stops
  • Single automatic push-button operation
  • Custom car size up to 18 square feet
  • Custom car heights
  • Shaker or Recessed panel car with flat ceiling
  • Shaker, Recessed or Raised panel car with matching ceiling
  • Four recessed LED lights with Black, Polished Brass, Brushed Nickel or Bronze trim rings
  • Factory-finished car
  • Polished Stainless Steel, Polished or Brushed Brass, Black, Vintage Bronze and Oil-Rubbed Brass fixtures (including COPs, phone boxes, hall calls and handrails)
  • COP with integrated keypad phone
  • Custom wood interiors
  • Custom factory finishes (Antiqued, Distressed and Crackle)
  • “Green” material alternatives and finishes for car interiors
  • 34” finished or unfinished installed hardwood car flooring
  • Factory flooring insert for 14” flooring by others
  • Buffer springs (requires minimum of 10 inch pit depth)
  • Key switch for COP and/or hall stations
  • 750-pound car capacity

Safety Features:

  • Slack chain safety device
  • Two upper and one lower final limit
  • Machine stop switch
  • Motor controller supply disconnects (located in controller)
  • Car light supply disconnects (located in controller)
  • Pit stop switch
  • Car-top stop switch
  • In-car emergency stop switch and alarm
  • Safety switch for car gate(s)
  • Battery backup emergency car lights and alarm
  • Electromechanical hoistway door interlocks (doors by others)
  • Light curtain monitoring the car entrance

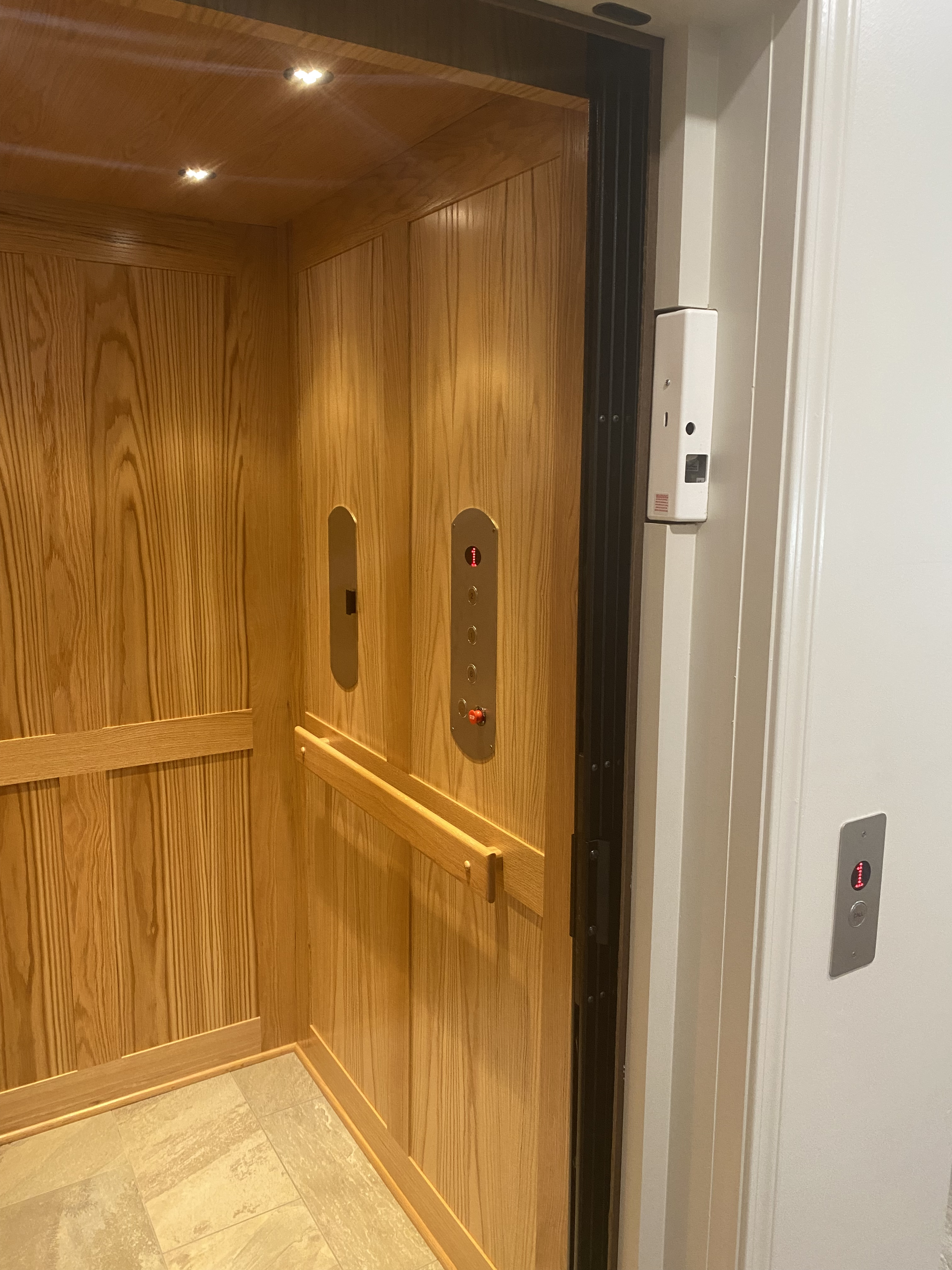

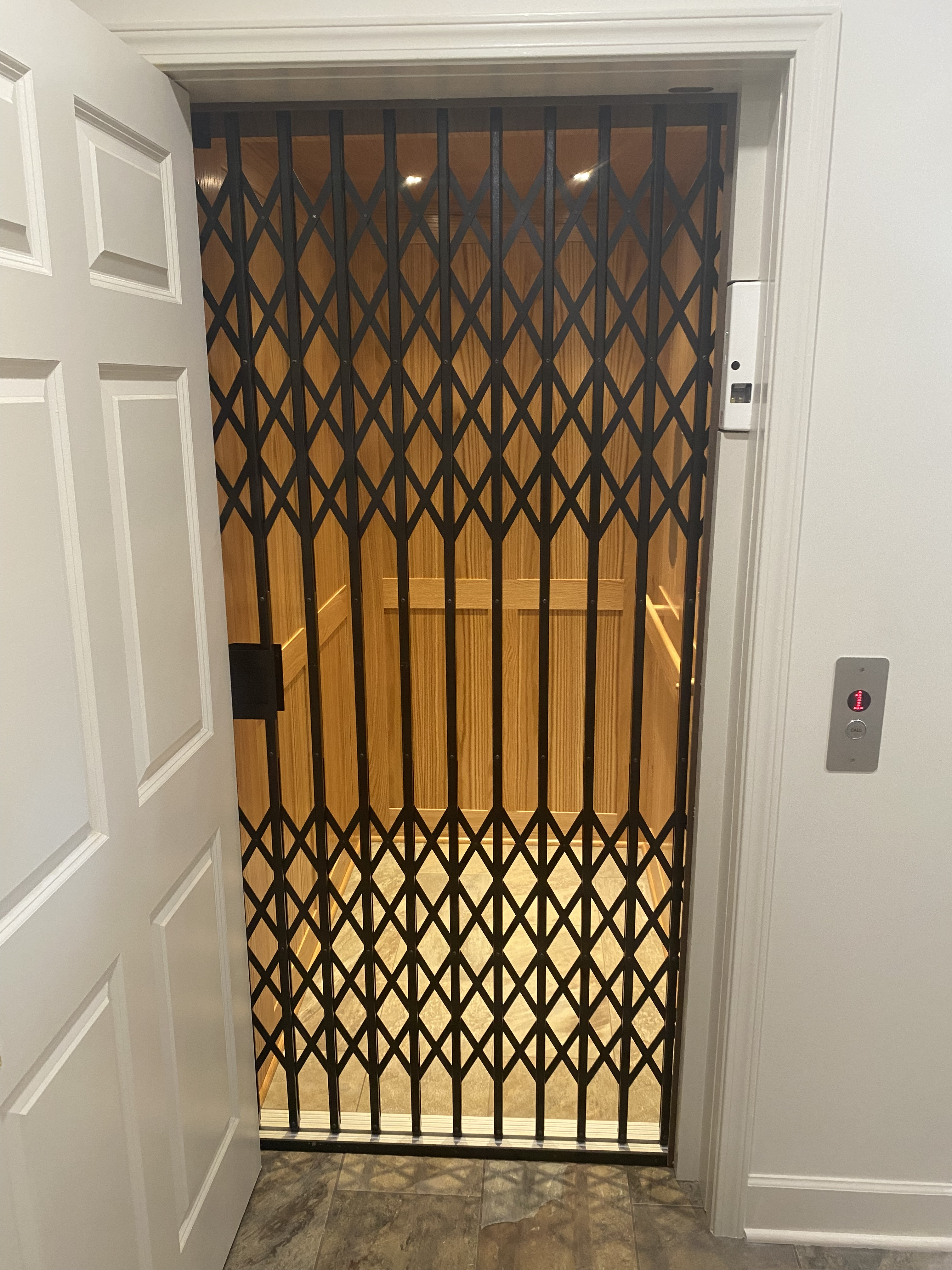

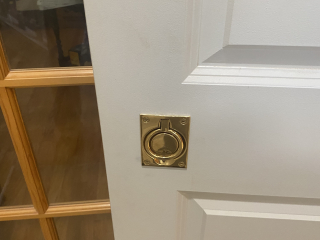

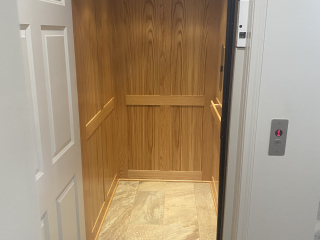

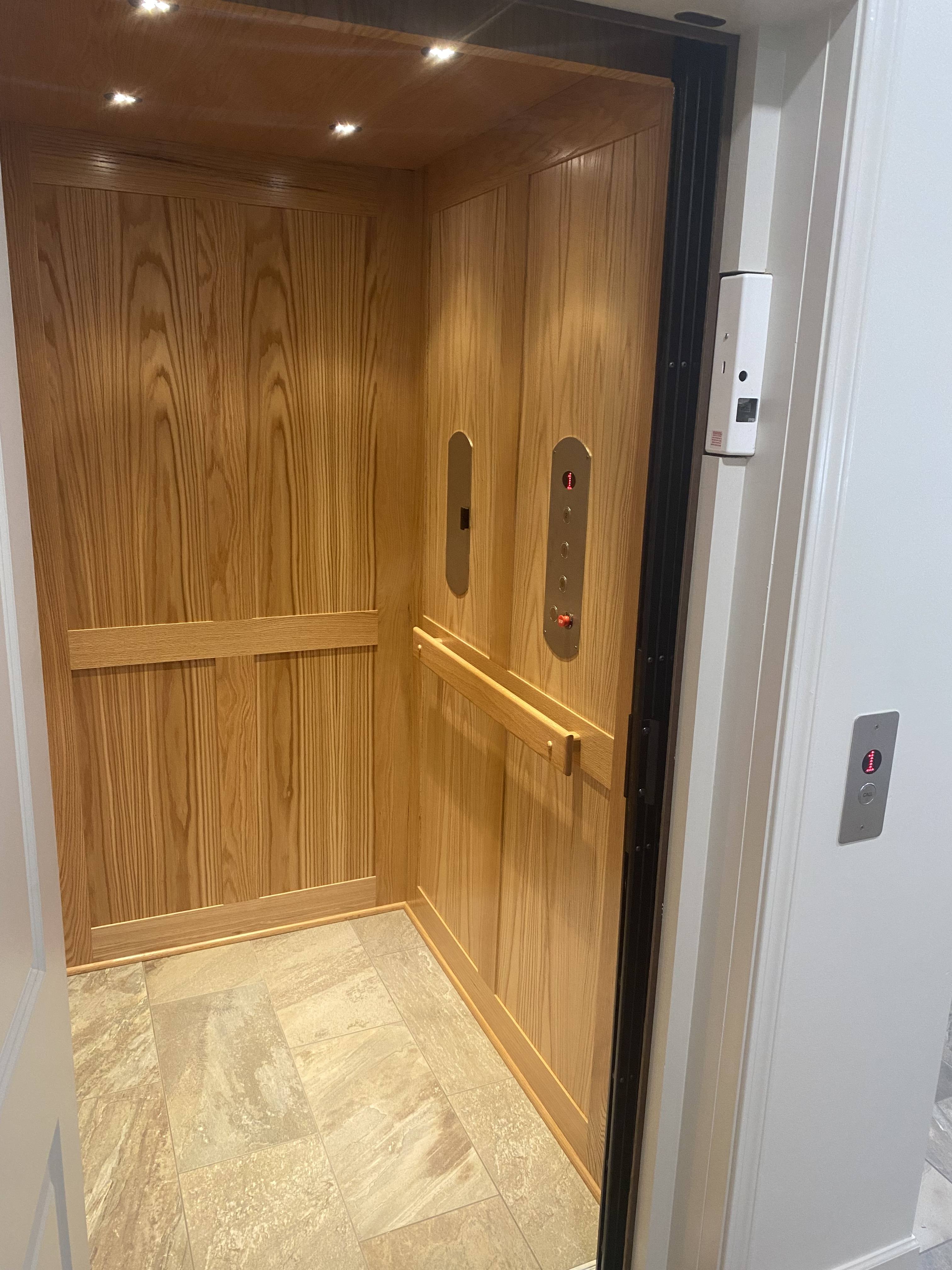

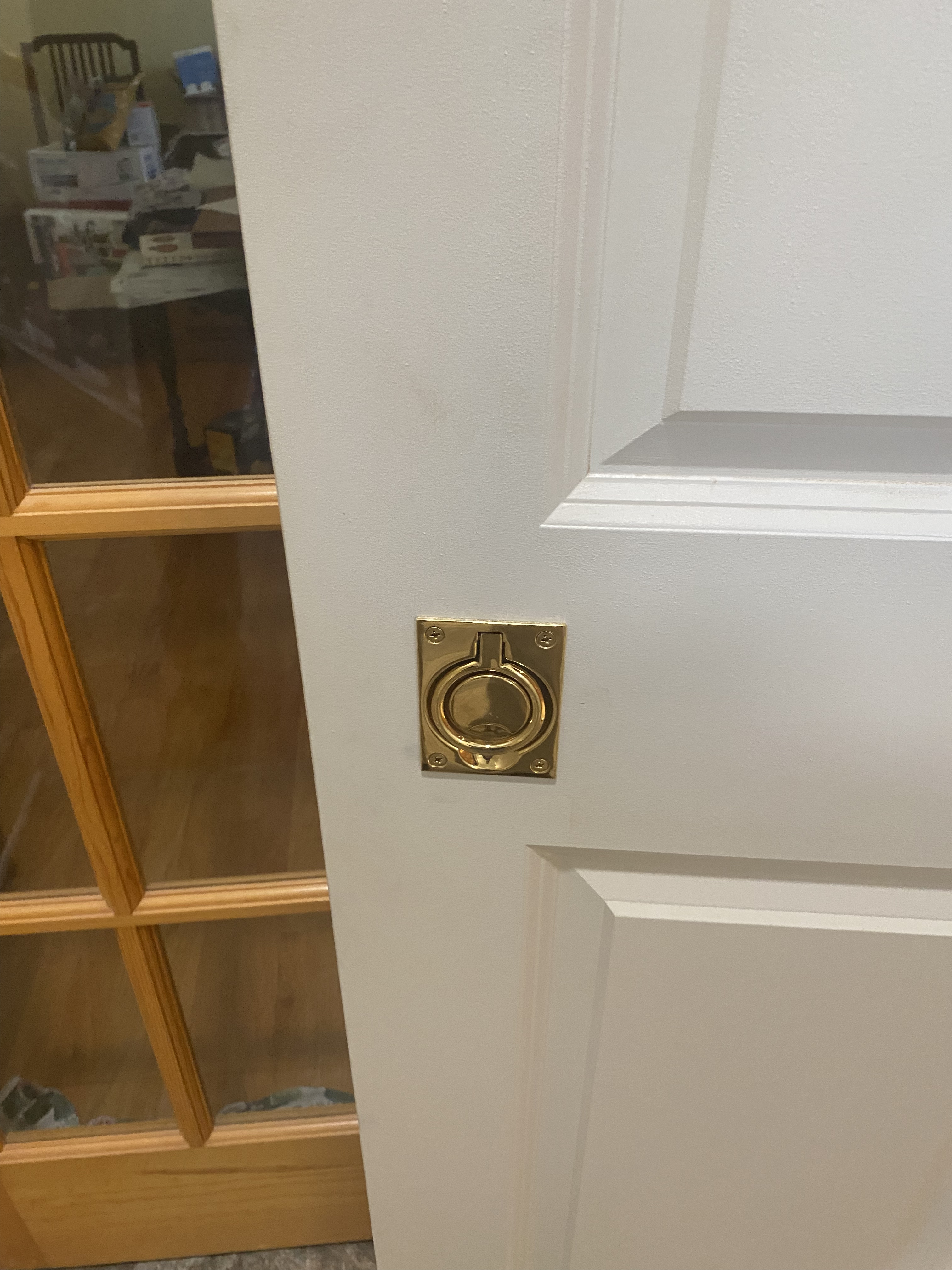

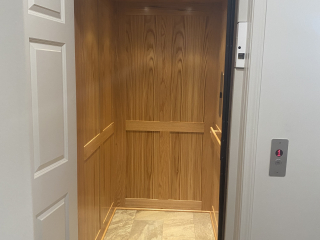

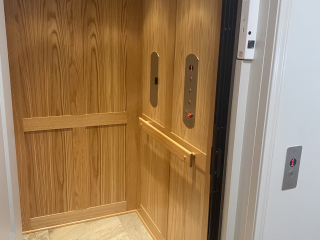

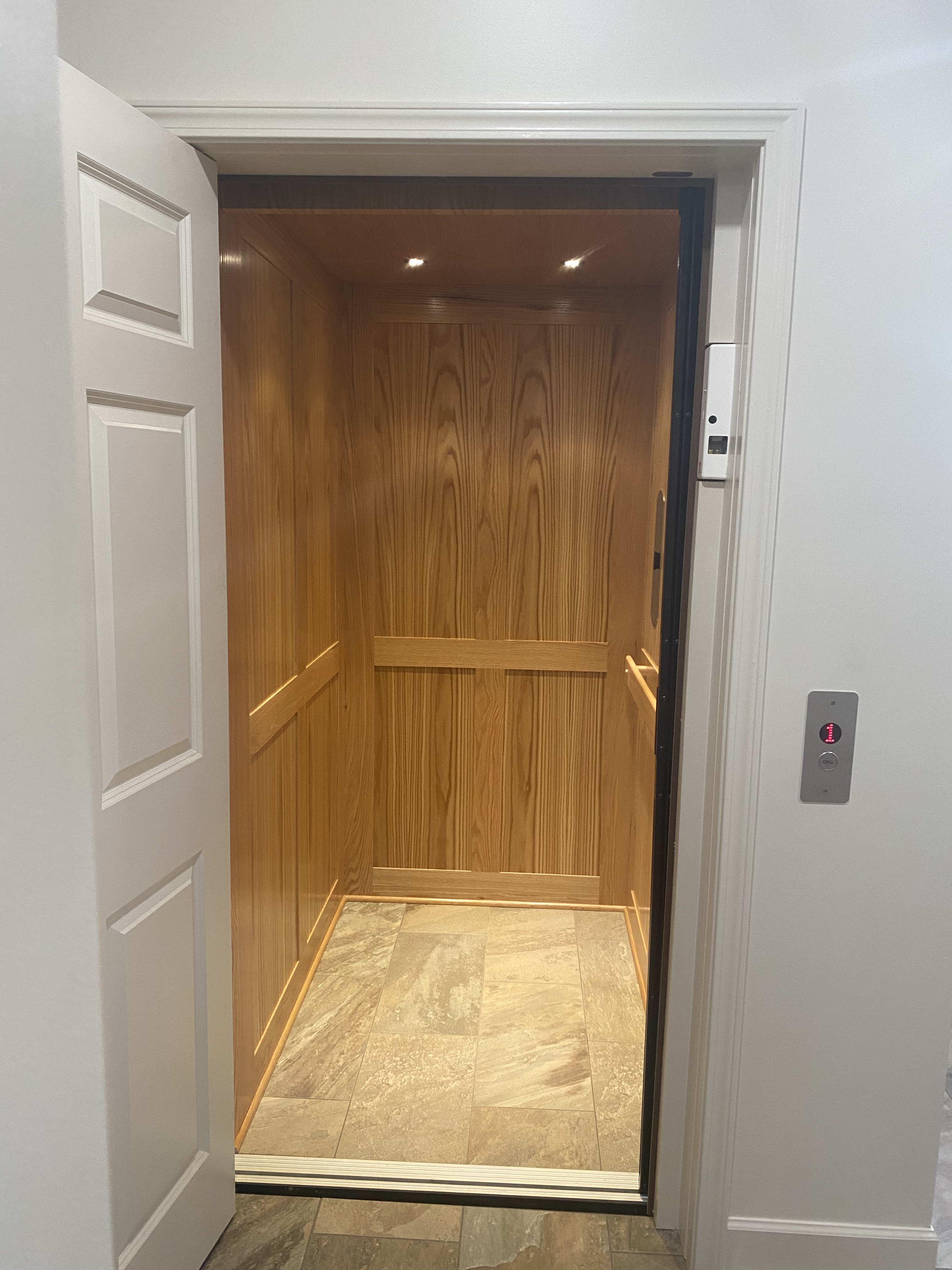

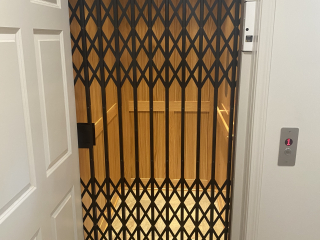

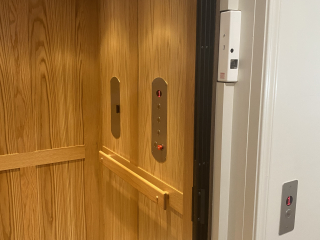

In-Line Gear Drive Installation Gallery
